Quality control in heat treatment is a critical aspect to ensure that the heat treatment process and products meet design requirements. Among the various quality control tasks, hardness testing, metallographic analysis, and magnetic particle inspection are three common and essential activities.

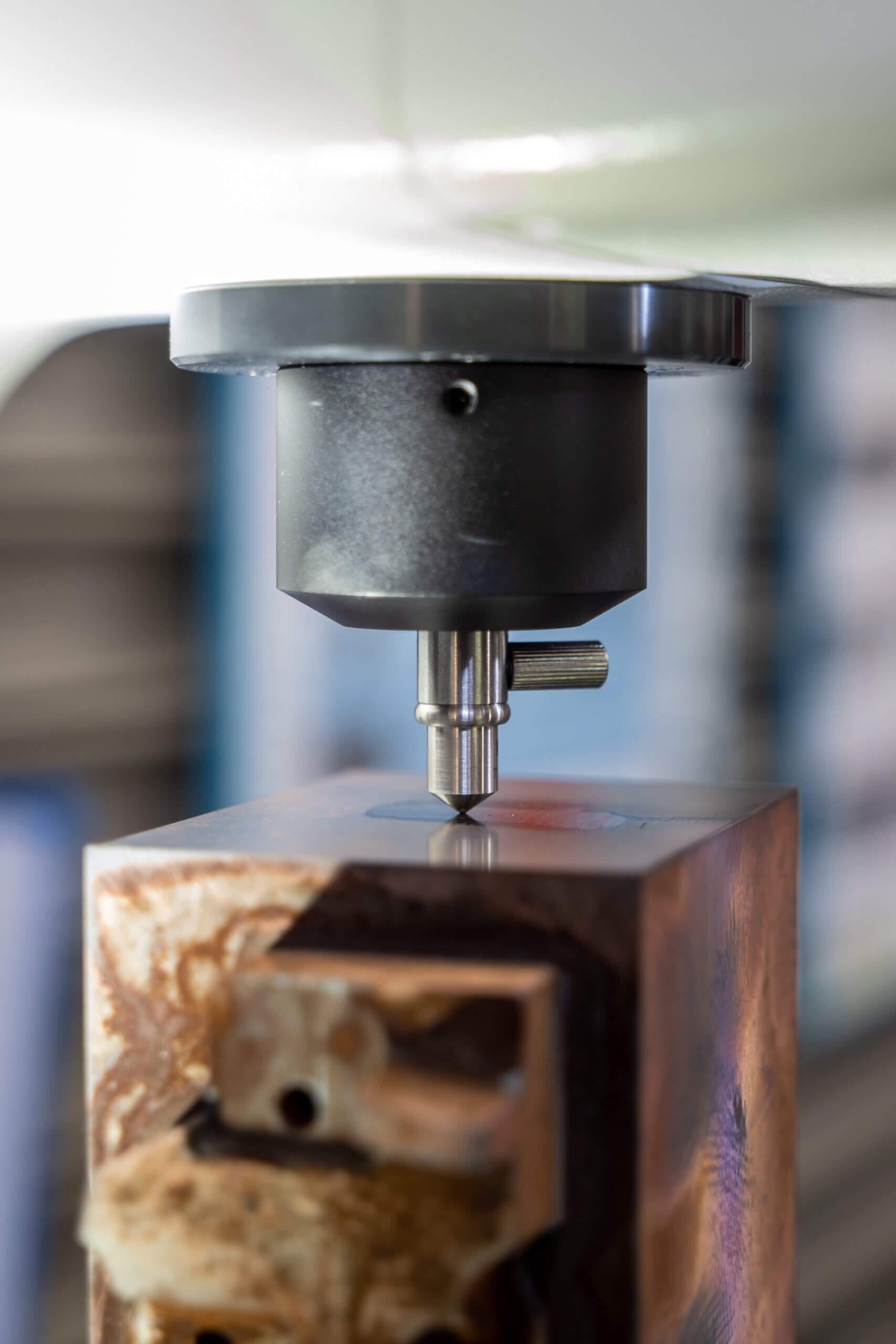

Hardness Testing
Hardness testing is one of the methods used to evaluate material hardness. Hardness tests can be conducted through indentation, impact, and friction methods. Common hardness testing methods include Brinell hardness test, Rockwell hardness test, Vickers hardness test, and Shore hardness test. During the heat treatment process, hardness testing can confirm whether the treatment effects meet the requirements and whether the material complies with design specifications.
Metallographic Analysis
Metallographic analysis involves observing and analyzing the metallographic structure of materials to assess their quality and performance. This process typically includes preparing metallographic samples, microscopy observations, and analyses. During heat treatment, metallographic analysis can verify whether the material has achieved the required metallographic structure and evaluate the effects of heat treatment on the material’s structure and properties.
Magnetic Particle Inspection
Magnetic particle inspection is a non-destructive testing method used to detect surface and subsurface defects in metallic materials. Its principle involves applying a magnetic field to the surface of the metal to be inspected and sprinkling magnetic particles on the surface. When the magnetic particles in the mixture are attracted to defect areas, they form visible lines, revealing the location and shape of defects in the metallic material.
In addition to these three analyses, quality control in heat treatment also includes other aspects of inspection and evaluation, such as physical property testing, chemical composition analysis, ultrasonic testing, spark testing, and liquid penetrant inspection. The purpose of these quality control activities is to ensure that the heat treatment process and product quality meet design requirements, thereby ensuring product quality and performance.
